Former Sulzer Factory, Camphill, Birmingham – Case Study

Goodstone Living
£1.25m
Phase one: October 2021- June 2022

John F Hunt Regeneration were contracted to undertake the full demolition works required at the Former Sulzer Factory, Camp Hill, Birmingham. The Demolition comprised of factory units including the removal of slabs and foundations and removal of contaminated hotspots from previous industrial use. The site is bounded by a railway network to the Northern boundary and has roads on all other sides.

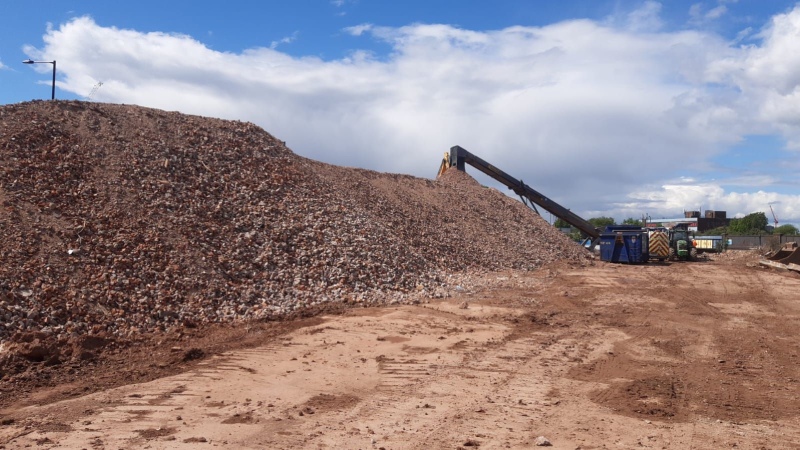

Former Sulzer Factory Camphill Birmingham Image 5

History

Based on provided third-party information, the earliest map dated 1890 showed the majority of the site to be residential property. By 1951, an electrical engineering works occupied the central section of the site and two ‘ruins’ (possibly World War II bomb damage). By 1970, the ruins were no longer shown, and Heating and Ventilation works were marked in the south-eastern section of the site. The school building and remaining residential properties were demolished and the site had expanded by 1989 and occupied by Sulzer until 2020.

Scope of Work

  • Licenced and Non-Licensed Asbestos removal.
  • Soft stripping of all buildings
  • Demolition of Above ground structures
  • Slabs and Foundation excavation.
  • Knotweed excavation
  • Remediation of Hot spot areas
  • Crushing of arisings to 6f2 specification
  • Reprofiling of the site

Challenges

  • Road closure during Commonwealth games preparations
  • Working along network rail
  • Demolition with close proximity to neighbours
  • Restrictive working near Canal River trust asset
  • Deep foundations
  • Industrial hotspots

Curtain Wall

The close proximity of neighbours and network rail assets included the need for road closures and use of a Curtain Wall to deflect debris and protect the neighbouring structures.

Former Sulzer Factory Camphill Birmingham Image 4
